Automatic Cell Counter
FACSCOPE® B is an automatic stand-alone cell counting system based on a bright-field microscopy. FACSCOPE® B overcomes inconvenience associated with conventional hemocytometer by providing features such as autofocusing, customized presets, various counting modes, and user-friendly software.
01
Irregular and aggregated cells can be clearly identified with FACSCOPE’s advanced cell detection algorithm
02
Automatic focusing function scans multiple focal points and automatically selects the best one
03
Larger counting volume provides more precise and reliable counting results
04
Selectable and customizable presets, gating adjustments, and counting modes are provided
05
Reduces inconvenience by eliminating the need for washing slides

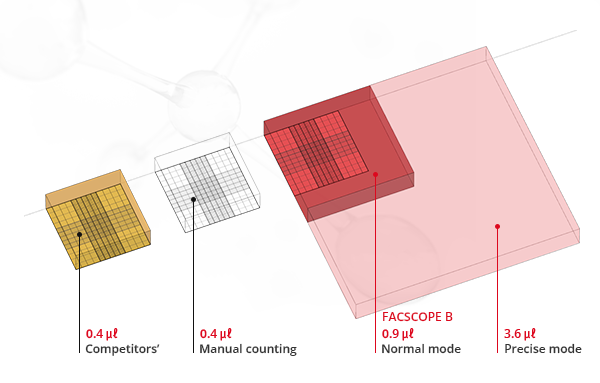

FACSCOPE B analyzes larger counting volume than hemocytometer and any other cell counters, therefore acquires more reliable and meaningful results.

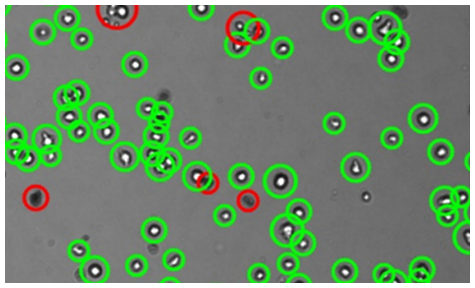

The advanced recognition algorithm of FACSCOPE B provides users with the opportunity to observe various cells accurately. Irregular cells and aggregated cells can be clearly identified, as well as live and dead cells for various cell-based studies.
To check general size and shape of cells
To count non-circular or variant shape of cells
To test small size of cells
Customized preset Available to create up to 15 cases as users
1
1 IMAGE
2
6 IMAGES (DEFAULT)
3
24 IMAGES
| Dimension | 163 × 293 × 216 mm |
|---|---|
| Weight | 5.0kg / 11.0lb |
| Objective Lens | 4X |
| Imaging modes | Bright field |
| Light source | LED |
| Camera | 5MP CMOS |
| Measuring concentration range | 1 x 10⁴ ~ 1 x 10⁷ cells/mL |
| Detectable cell diameter | 5 ~ 60µm |
| Measuring speed* | Quick mode: ≈ 20s per test Normal mode: ≈ 30s per test Precise mode: ≈ 100s per test |
| Counting area | Quick mode: ≈ 0.15 µL Normal mode: ≈ 0.9 µL Precise mode: ≈ 3.6 µL |
| Catalog No. | Description |
|---|---|
| CRFCB-01 | FACSCOPE® B, Automatic cell counter (Brightfield) |
| CRFCB-CSD50 | FACSCOPE® Slide, Disposable slide for FACSCOPE® B 50 slide/box (200 test) |
| CRFCB-SK01 | FACSCOPE® Starter Kit, FACSCOPE® Slide 5ea + touch-pen + USB Memory |
| CRFCB-SS01 | Standard slide, IQ/OQ package |
| CRFCB-KP01 | Keypad |
| CRFCB-BS01 | Barcode scanner |
| CRFCB-TP01 | Thermal printer |
2022-04-07
2022-04-07
2022-04-11
2022-03-15
2024-01-29
2024-01-29
2024-03-12
2024-03-12
2022-08-16
2024-01-29
2024-01-29
2022-06-10
2022-06-10
We developed our own disposable hemocytometer called FACSCOPE Slide and only FACSCOPE Slide is suitable for FACSCOPE B.
Yes, you can.
FACSCOPE B is the 4X Bright-field
microscope-based instrument.
After the sample is inserted into the
device, autofocus is adjusted to detect the cell in the most suitable position.
Next, the sample is moved to the designated location through the fully
motorized stage, and the images are collected as if the camera is taking a
picture. Finally, the collected images are analyzed, and the counting result is
generated.

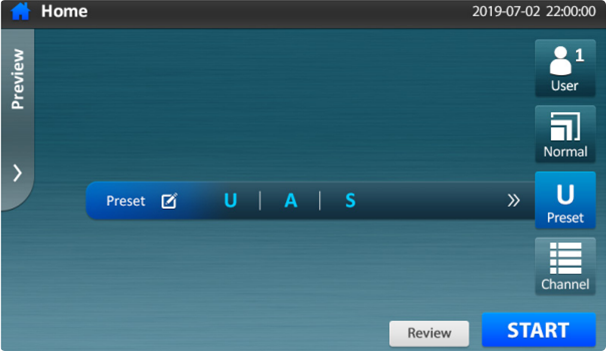

FACSCOPE B is a stand-alone device equipped
with LCD touchscreen. The user can check the cell counting results and images
on an LCD monitor in real-time without connecting to PC.
FACSCOPE Slide is a disposable hemocytometer for FACSCOPE automatic cell counter. To increase accuracy, it is highly recommended not to reuse after opening it.
It is to increase accuracy by reducing
pipetting errors and variations.
* Trypan blue (10µl): Cell sample (10µl) = 1: 1 mixing ratio
1 x 104 ~ 1 x 107 cells/mL
5 ~ 60µm
